Barndominium Floor Plans: From Concept to Permit-Ready Blueprints

Description

Thinking about building your dream home? Barndominium floor plans have exploded in popularity, offering a unique blend of rustic charm, industrial durability, and open-concept living. Whether you are looking to convert an existing pole barn or build a custom steel-frame home from scratch, the design phase is the most critical step in your journey.

In this guide, we’ll explore everything you need to know about designing functional barndominium layouts, securing necessary permits, and ensuring your blueprints are builder-ready.

Why Barndominium Living is Redefining Modern Architecture

A “barndominium” is more than just a trend; it is a lifestyle choice that prioritizes flexibility. Unlike traditional stick-built homes, barndominiums often utilize large clear-span frames, which means fewer load-bearing interior walls. This allows for:

Massive Great Rooms: Soaring ceilings and expansive open areas.
Multi-Purpose Spaces: Combining a luxury living area with a workshop, garage, or aircraft hangar.
Cost-Effectiveness: Often faster to dry-in, allowing for potential savings on labor and materials.

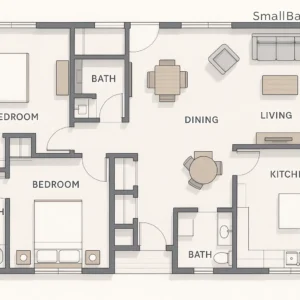

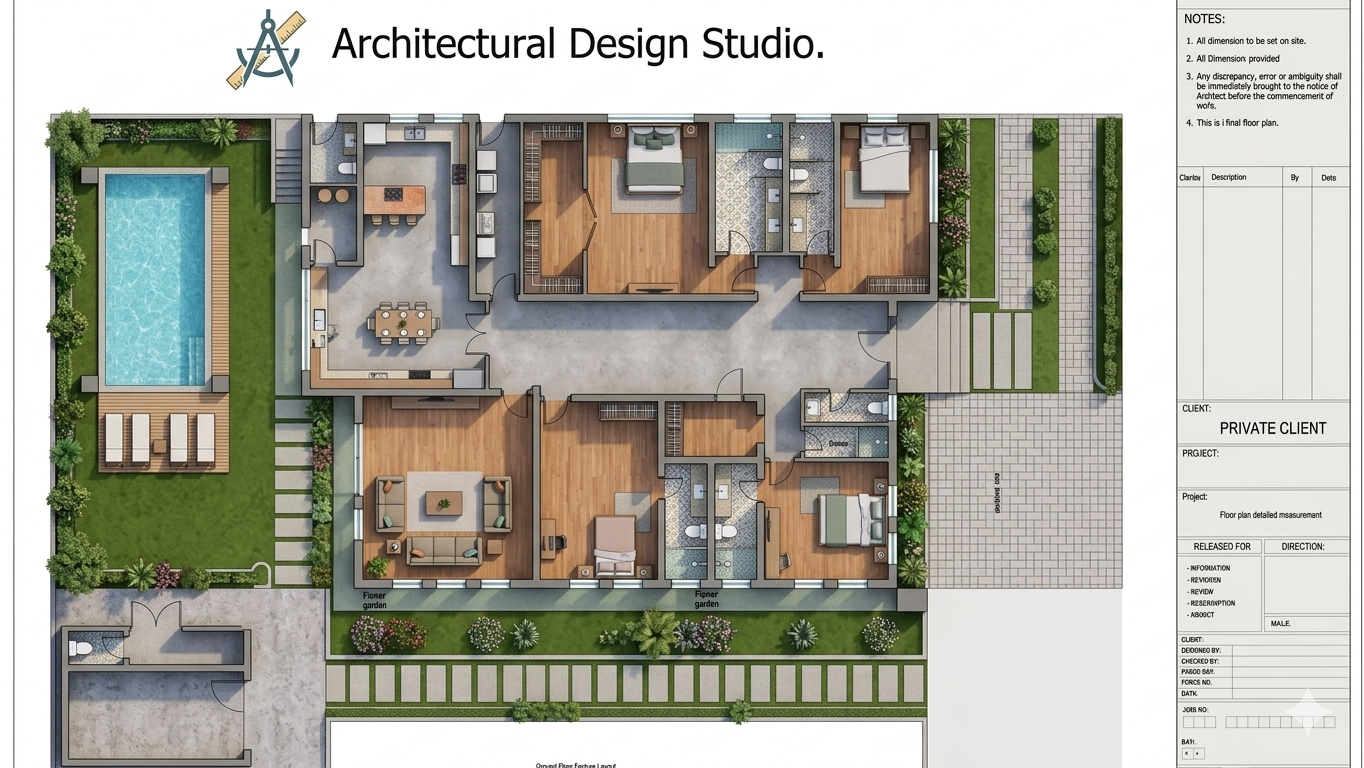

Key Elements of Professional Barndominium Floor Plans

When browsing for barndominium floor plans, it is easy to get lost in beautiful 3D renderings. However, a functional plan must include technical precision to move from a “dream” to a “site.”

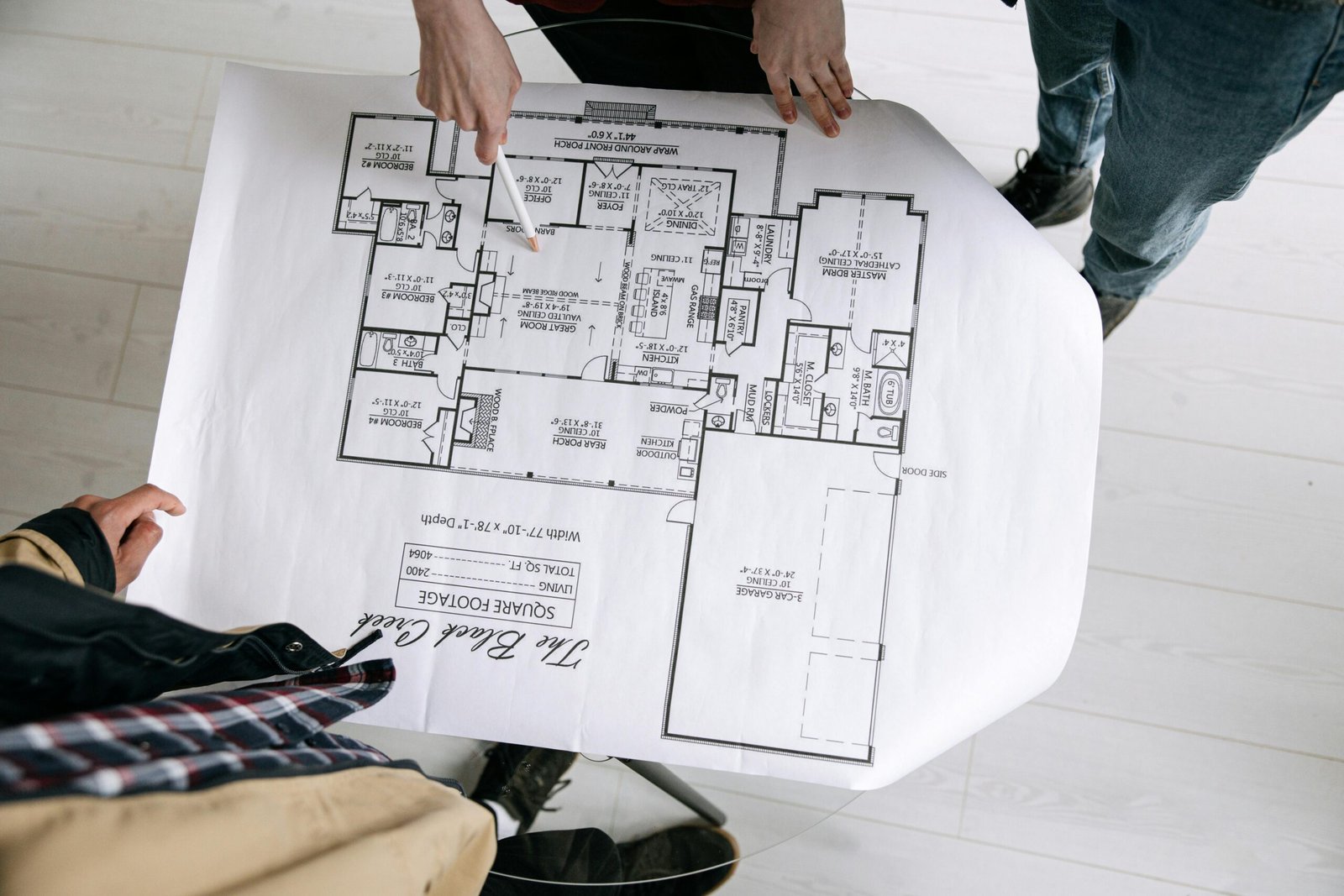

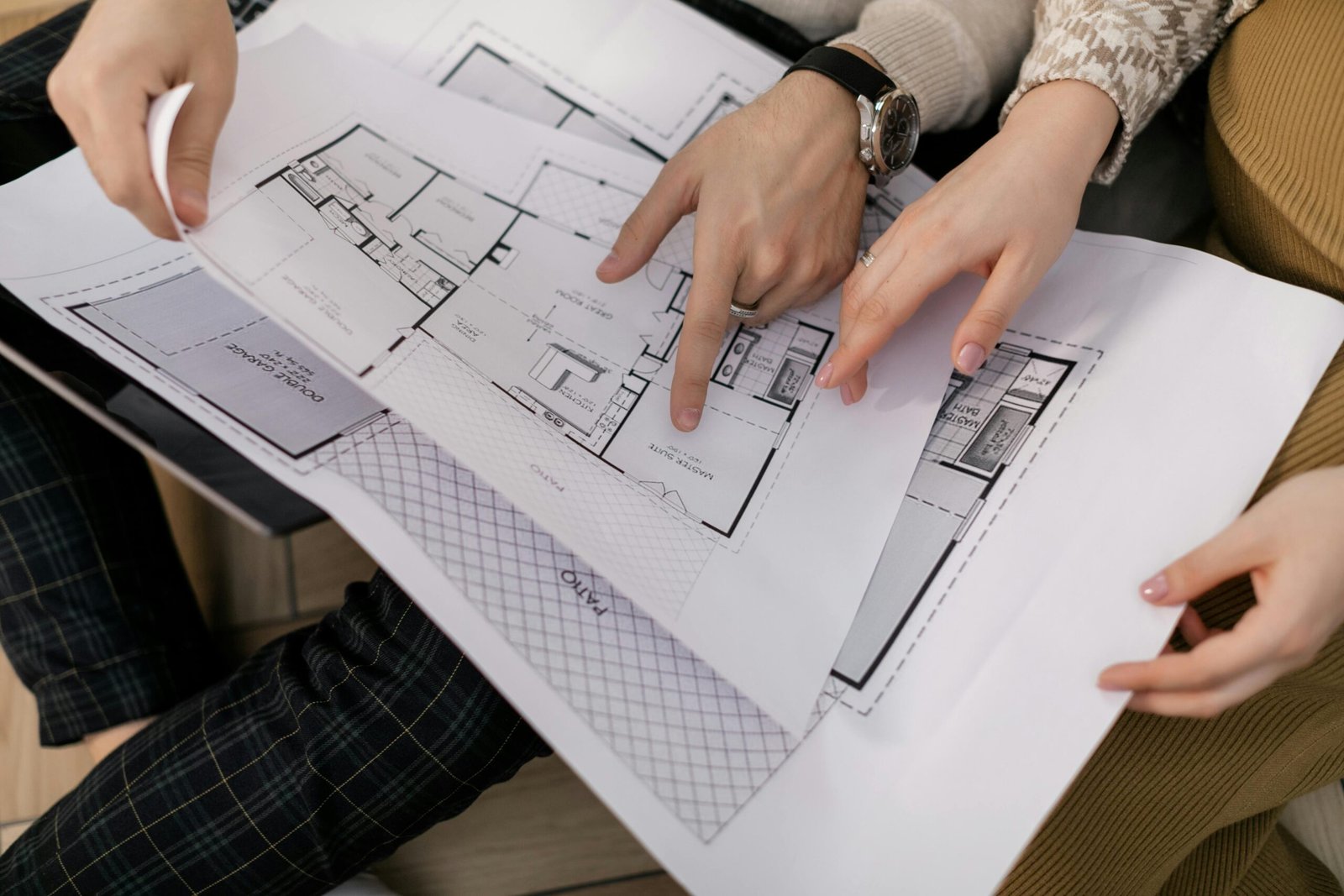

1. 2D & 3D Architectural Drawings

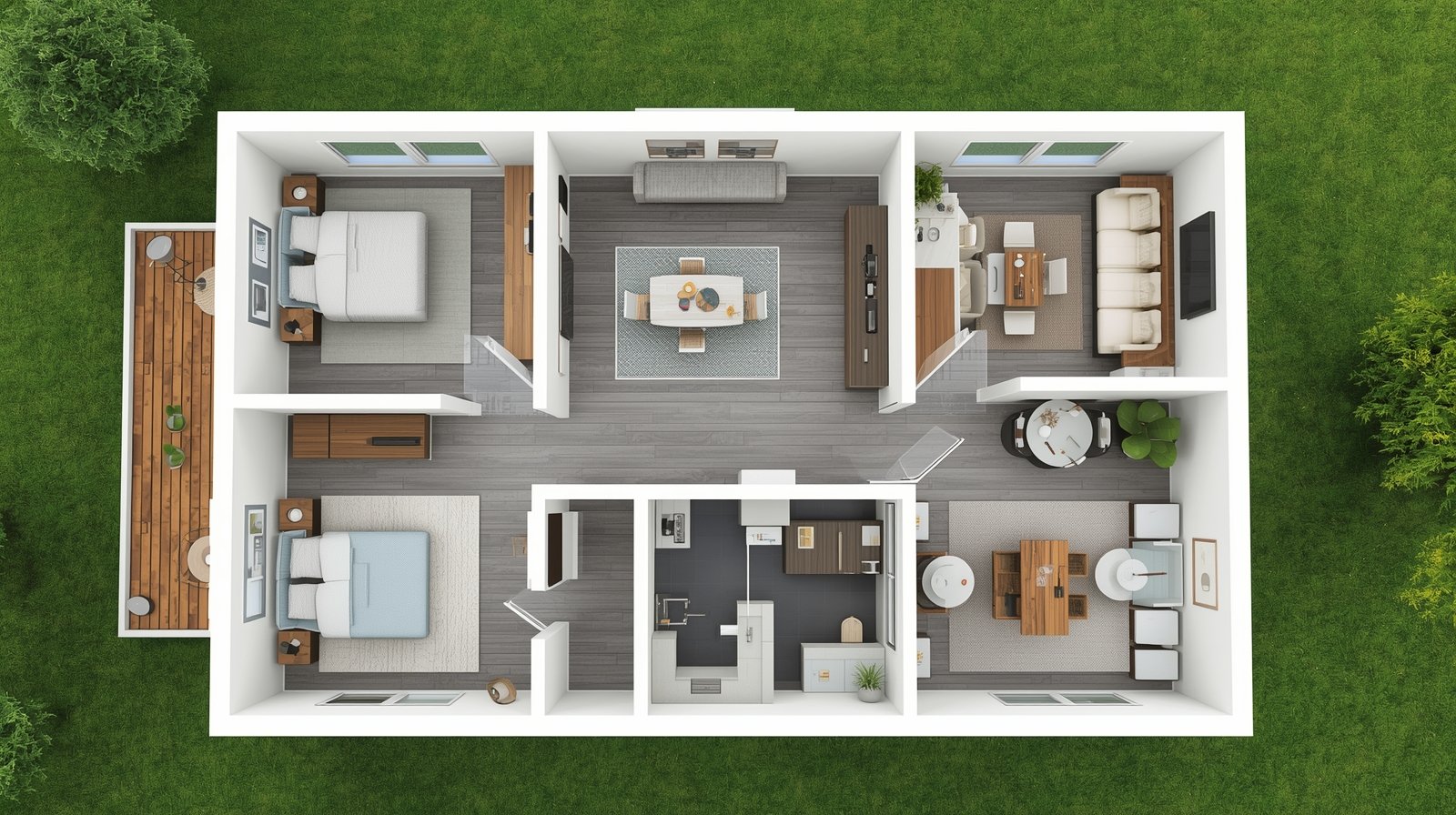

While a 2D floor plan shows the layout, 3D renderings help you visualize the scale and flow of the home. Professional designers use software like Autodesk AutoCAD, Revit, and 3ds Max to ensure every inch is accounted for, from the kitchen island placement to the height of the loft.

2. MEP Drawings (Mechanical, Electrical, and Plumbing)

This is where many DIY plans fall short. To get a building permit, you often need detailed MEP layouts. This includes:

Electrical Plans: Outlet placement, lighting circuits, and panel locations.
Plumbing Layouts: Supply lines, drainage, and fixture locations.
Mechanical Plans: HVAC ductwork and ventilation.

3. Site & Master Plans

Your barndominium doesn’t exist in a vacuum. A master plan accounts for the orientation of the building on your lot, drainage, utility hookups, and driveway access.

Navigating Permits: The Importance of Licensed Stamps

One of the biggest hurdles in the construction process is local authority approval. In many U.S. states and Canadian provinces, “sketchy” drawings won’t cut it. You may require:

Architectural Stamps: Verification that the design meets safety and aesthetic codes.
PE (Professional Engineering) Stamps: Crucial for steel structures to ensure they can withstand local wind and snow loads.

Professional services can often provide licensed architectural or PE stamps specifically for barndominium projects to meet city and authority requirements. This is especially vital in regions with strict building codes like Texas, Quebec, or California.

Converting Your Vision into CAD

Do you have a hand-drawn sketch or a PDF you found online? The first step toward construction is PDF/Sketch to CAD conversion. High-quality CAD work ensures that your builders and contractors have accurate measurements, reducing the risk of costly errors during the framing stage.

Must-Have Technical Details:

Elevations & Sections: To show the exterior look and vertical structure.
Door & Window Schedules: Ensuring energy efficiency and proper framing.
Foundation Plans: Tailored to your specific soil type and structure weight.

Final Tips for Ranking Your Barndominium Project

If you are looking for the best results, don’t just settle for a generic layout. Look for a design partner who offers:

Quick Delivery: To keep your construction timeline on track.
Industry Standards: Ensuring your plans are “permit-ready.”
Versatility: Ability to handle residential, commercial, or office-hybrid designs.

Your barndominium floor plans are the foundation of your future home. By prioritizing detailed MEP drawings, CAD accuracy, and licensed stamps, you can transition smoothly from the planning phase to the move-in day.

Ready to bring your project to life? Whether you need a fresh design or a redraw of existing stamped drawings, professional architectural services are the key to a successful, legal, and beautiful barndominium build.
